Photoelectric retro-reflective sensor, Dual lens
Description
|
Manufacturer
|
Sick | |
|
Type of sensor
|
Photoelectric retro-reflective sensor, Dual lens | |
|
Range
|
0,06…7200mm | |
|
Output configuration
|
PNP | |
|
Operation modes
|
DARK-ON / LIGHT-ON | |
|
Operation mode
|
Retro-reflective | |
|
Connection
|
connector M12 4pin | |
|
IP rating
|
IP67 | |
|
Switching frequency max
|
1000[Hz] | |
|
Operating temperature
|
-25…55°C | |
|
Housing material
|
Metal, Nickel-plated brass and ABS | |
|

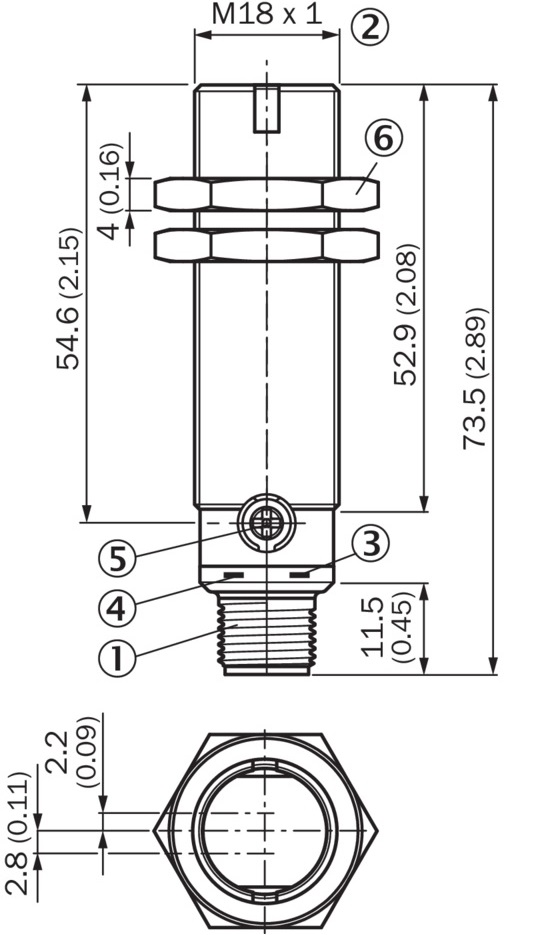

Body dimensions
|
M18 x 1 | |
|
Supply voltage
|
10…..30VDC | |
|
Sensors features
|
sensitivity adjustable Potentiometer |
